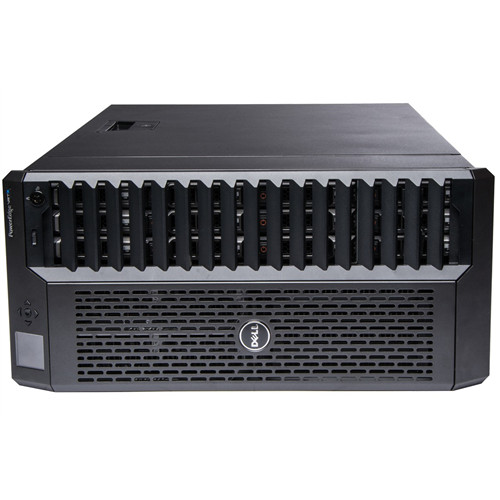

Dell PowerEdge VRTX Modular Platform Blade Chassis 24SFF HDD Bay 4x Dell PowerEdge M Series Blade Bay 1x CMC 1x Perc8 1GB RAID 4x PSU Rack

PowerEdge VRTX modular platform Server and Storage, Supported Dell Blade servers DELL PowerEdge M Series, 1x Dell Chassis Management Controller CMC Y1F41, VRTX Network 1GbE R1-2401 Switch H4THX Integrated networking 1GbE 8-port pass-through module; 24x SFF 2,5' SAS/SATA HDD Hot Swap Bay, 0HDD, Shared perc8 RAID Controller Dell PN P3WV4 (H710p) 1GB 1333MHz NV RAM Battery Backup Unit (BBU) Dell 70K80 LSISAS2208 dual-core PowerPC ROC, max Drive 32, Supports 1.5Gb/s, 3Gb/s, and 6Gb/s, RAID Level 0,1,5,6,10,50,60, VRTX Network 1GbE R1-2401 Switch Integrated networking 1GbE 8-port pass-through module; 4x 80Plus Platinum 1100W Redundans Power Supply, NTCWP, I/O Slot: 8 flexible PCIe slots: 3 full-height/full-length slots (150W) with double-wide card support (225W), 5 low-profile/half-length slots (25W), 5U Rack
Űjszerű

Bővebben:
http://i.dell.com/sites/doccontent/shared-content/data-sheets/en/Documents/poweredge_vrtx_spec_sheet.pdf
